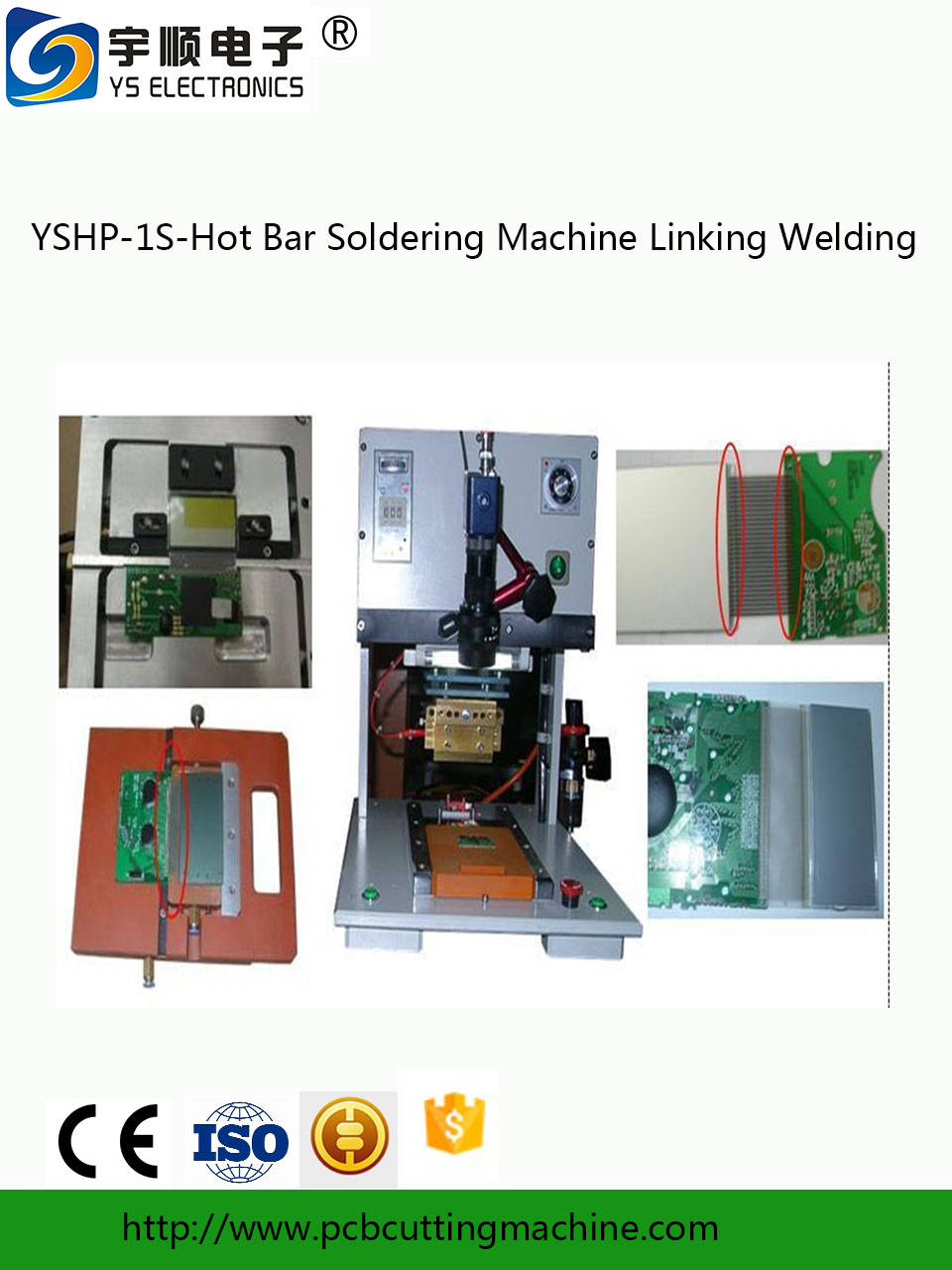

Pneumatic Hot Bar Automatic Soldering Machine - Pneumatic Hot Bar Automatic Soldering Machine Manufacturers, Suppliers and Exporters on pcbcuttingmachine.com Electronics Production Machinery

Product Details:

Delivery Time : ：1-3 days after payment confirm
Packaging Details : ：plywood case

Payment & Shipping Terms:

Brand Name：YUSHLI
Model Number : ：YSHP-1S
Certification : ：CE ISO9001
Payment Terms : ：T/T, L/C, Western Union,paypal

Detailed Product Description

Air pressing (MPa) ： 0.5~0.7
Size (MM) ： 500*750*910
Weight (Kg) ： 90
Guarantee ： 1 Year
Delivery ： 1 Day
Min. Order ： 1 Set
Ability ： 1000 Sets
Working area (mm) ：110*150
Temperature setup ：20-400°C
Tolerance of Temp ：+2°C
Time of pressing ：1-99s 0-99s
Tolerance of Pressing ：0.05MPA
Model ：YSHP-1S

Feature:

1. Closed Loop PID temperature control with visible LED display

2. LCD display programmable pressure switch for precise force control

3. Each heating cycle is triggered by a real time pressure sensor

4. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined

5. Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB

6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation

7. Parts registration is adjusted by micrometer and secured by vacuum lock

8. Optional CCD system for fine pitch component

Specifications:

Model: YSHP-1S

Size: 500mm X 750mm X 910mm

Work Air Pressure: 0.5-0.7MPA

Working Area: 110mm X 150mm

Temperature setup: 0-400℃

Tolerance of Temp: +2℃

Time of pressing: 0-99s

Tolerance of Pressing : 0.05MPA
